Due to greater data rates and bandwidth expansion, fibre optic connector equipment and racks are becoming increasingly dense and difficult to access. Cramped communications closets, dense data centres, and tower installs make carrying and using traditional fibre optic connector inspection equipment difficult.

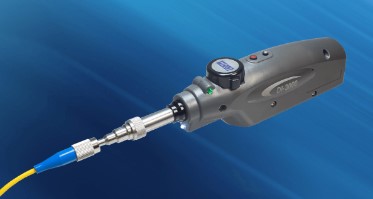

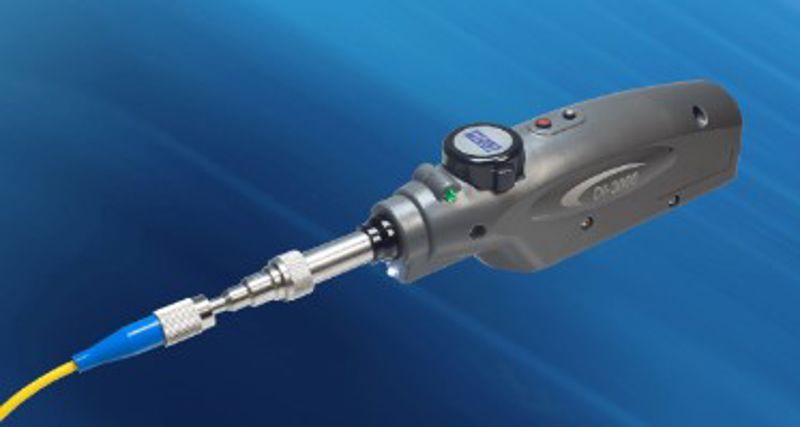

Built upon the successful Digital Inspector (DI-) product suite, Lightel has developed the DI-3000 embedded Wi-Fi and autofocus probe, eliminating the need for direct USB connectivity to display devices. The DI-3000 allows the user to effortlessly inspect, store, certify and analyse fibre optic connectors without a physical connection to your Android mobile device, PC, laptop, or other test equipment.
In addition to embedded Wi-Fi connectivity, the DI-3000 features rapid one-touch autofocus. When the focus is achieved, the unit’s vital indicator LED will change from red to green, saving time and simplifying the fibre optic inspection process. It also has a built-in flashlight, making things easier for technicians working in wiring closets or data centres with poor lighting. With its easily accessible capture button, capturing and saving images to your Android or Windows device is simple. Like all the DI Series scopes, the DI-3000 can use any of Lightel’s more than 120 tips.
Features
USB connectivity can be used for secure facilities
Embedded wireless functionality
Rechargeable battery-powered unit with long-lasting battery life
One-touch autofocus
Capture and save end-face images to a smart device with the push of a button
Built-in flashlight for use in dark conditions
Compatible with more than 120 inspection tips
Optional pass/fail software for Windows
Specifications
Field of View
~ 640µm x 480µm
Detectable Resolution
0.5µm
Focus
Autofocus or manual adjustment, 2mm max travel
Autofocus Time
2-4 seconds
Camera
1/4" CMOS
Light source
Blue LED
Power Supply
Rechargeable Li-ion battery or USB2.0 (or higher) port
Battery Life
Up to 7 hours
Dimensions
205mm x 37mm x 48mm (probe with cap)
Weight
187g (including battery)
Operating Temperature
0°C to 50°C
Storage Temperature
-20°C to 70°C
Supported Operating Systems (ConnectorView Software)
Windows® 7, Windows® 8, Windows® 10, 32-bit and 64-bit processors, Android 6 and up and iOS 15.5 and up
Packages
PACKAGE
PART NUMBER
DESCRIPTION
DI-3000-B2/PC/UK
Standard PC Package with UK plugs
PT2-U2.5/PC/M
Universal tip for male 2.5mm PC connectors
PT2-FS/PC/F
Tip for female FC and SC PC connectors
PT2-U1.25/PC/M
Universal tip for male 1.25mm PC connectors
PT2-LC/PC/F-1
Tip for female LC PC connectors
DI1-CASE-S
Soft carrying case
CVF-USB
Flash drive with ConnectorView (standard) software
DI-3000-B2/APC/UK
Standard APC Package with UK plugs
PT2-U2.5/APC/M
Universal tip for male 2.5mm APC connectors
PT2-FS/APC/F
Tip for female FC and SC APC connectors
DI1-CASE-S
Soft carrying case
CVF-USB
Flash drive with ConnectorView (standard) software
