DI-1000L-PRO

In Stock

Product Code:

Get In Touch

Call 01935 471606 or email info@avoptics.com and one of our team members will be happy to help quote this item for you. Alternatively, click on the quote button below to submit a form.

Call Us

ISO 9001 Cyber Essentials

See More Details
Product Overview

The DI-1000L-PRO combines the wide screen D-1000L with ConnectorView Plus v2 Pass/Fail software for fast objective analysis of singlemode and multimode fibre optic terminus end faces.

For information on individual packages to meet your specific needs, availability and latest pricing please contact us.

The DI-1000L-PRO combines the wide screen D-1000L with ConnectorView Plus v2 Pass/Fail software for fast objective analysis of singlemode and multimode fibre optic terminus end faces.

Feature include:

  • Digital probe for inspecting both patchcord termini and bulkhead adaptors
  • Direct USB2.0 connection to Windows® based PC’s and notebooks (Windows®8.1 compatible)
  • In-built image capture button
  • Digital zoom
  • Auto-centre of ferrule image with Pass/Fail analysis reports
  • Optional inclusion of detailed notes in the analysis report
  • IEC 61300-3-35 based analysis criteria, or custom set by user
  • IR filter option available

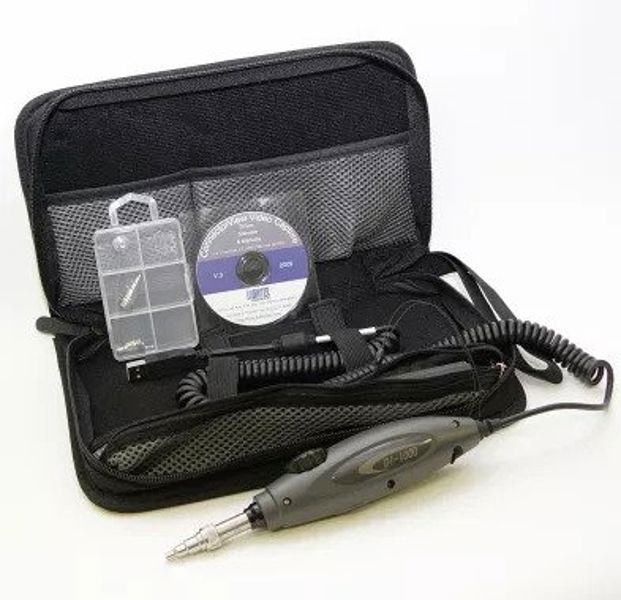

DI-1000L-PRO Package:

  • (1) DI-1000L USB 2.0 Digital Inspection probe
  • (1) CD with ConnectorView Plus v2 ‘pass/fail’ software, dongle, driver, and User’s manual
  • (1) Tip for SC and FC PC type female connectors
  • (1) Tip for LC PC type female connectors
  • (1) Universal tip for 2.5mm PC male connectors
  • (1) Universal tip for 1.25mm PC male connectors
  • (1) Carrying case

Please note these items are not held in stock. They are ordered from the manufacturer on receipt of payment. Typical delivery time from manufacturer is 5 to 7 days.
