DI-1000-B2 Digital Video Microscope Probe – Standard Package

In Stock

Product Code:

Get In Touch

Call 01935 471606 or email info@avoptics.com and one of our team members will be happy to help quote this item for you. Alternatively, click on the quote button below to submit a form.

Call Us

ISO 9001 Cyber Essentials

See More Details
Product Overview

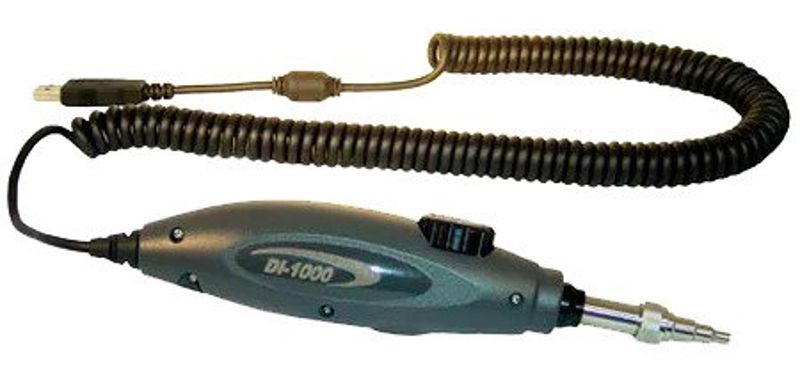

The ergonomically designed DI-1000 is Lightel’s all digital video microscope probe. It connects directly to your PC through the computer’s USB2.0 port. Featuring easy single finger focusing, a built-in image freeze/capture button, and detectable resolution to 0.5µm, the DI-1000 package includes free ConnectorViewTM (standard) software, providing digital zoom, image display, image capture, auto-calibration and basic analysis tools.

The DI-1000 uses Series 2 inspection tips, and can also use all CI-1000 tips with an optional adaptor.

Features

  • Fast, easy focus
  • One hand operation
  • Inspect patchcords (male) and in-adaptor connectors (female)
  • Direct USB2.0 connection to PC
  • Powered by USB connection
  • Built-in freeze/capture button
  • Slim ergonomic design
  • Rapid tip change
  • Comprehensive line of tips
  • Free image capture and software included
  • Digital zoom
  • Pass/Fail analytical software option available

The standard DI-1000-B2 package comes with:

  • Adaptor for SC & FC female connectors
  • Universal adaptor for 2.5 mm PC male connectors
  • Universal adaptor for 1.25 mm PC male connectors
  • Adaptor for LC PC male connectors
  • Carrying case
  • ConnectorView (standard) software, driver and user’s manual

The DI-1000-B2/APC package comes with:

  • Adaptor for SC & FC APC female connectors
  • Universal adaptor for 2.5 mm APC male connectors
  • Carrying case
  • ConnectorView (standard) software, driver and user’s manual

For information on packages to meet your specific needs, availability and latest pricing contact sales@fibreknight.co.uk
